Precision Steel Detailing for Structural Success

About

With over 15 years of experience, Smart Steel Detailing provides precise, clear, and efficient drafting solutions for all your structural steel needs. Using industry-standard Advance Steel software, we deliver precise and build-ready documentation. Based in Australia, servicing projects nationwide.

3D Modelling

We create detailed 3D models that bring your structural concepts to life, ensuring every element is precisely represented.

Clash Detection

Our clash checking process identifies and resolves design conflicts early, saving time and costly rework on-site.

Fabrication Drawings

Clear, workshop-ready drawings provide fabricators with accurate instructions for efficient and error-free production.

Part Files & .NC1

We generate .NC1 and part files for seamless integration with CNC machinery, streamlining material processing.

Material Lists

Comprehensive material and finish schedules help you plan, order, and budget with confidence.

Installation Plans

Our GA drawings ensure smooth site installation with clear, coordinated guidance for every stage of assembly.

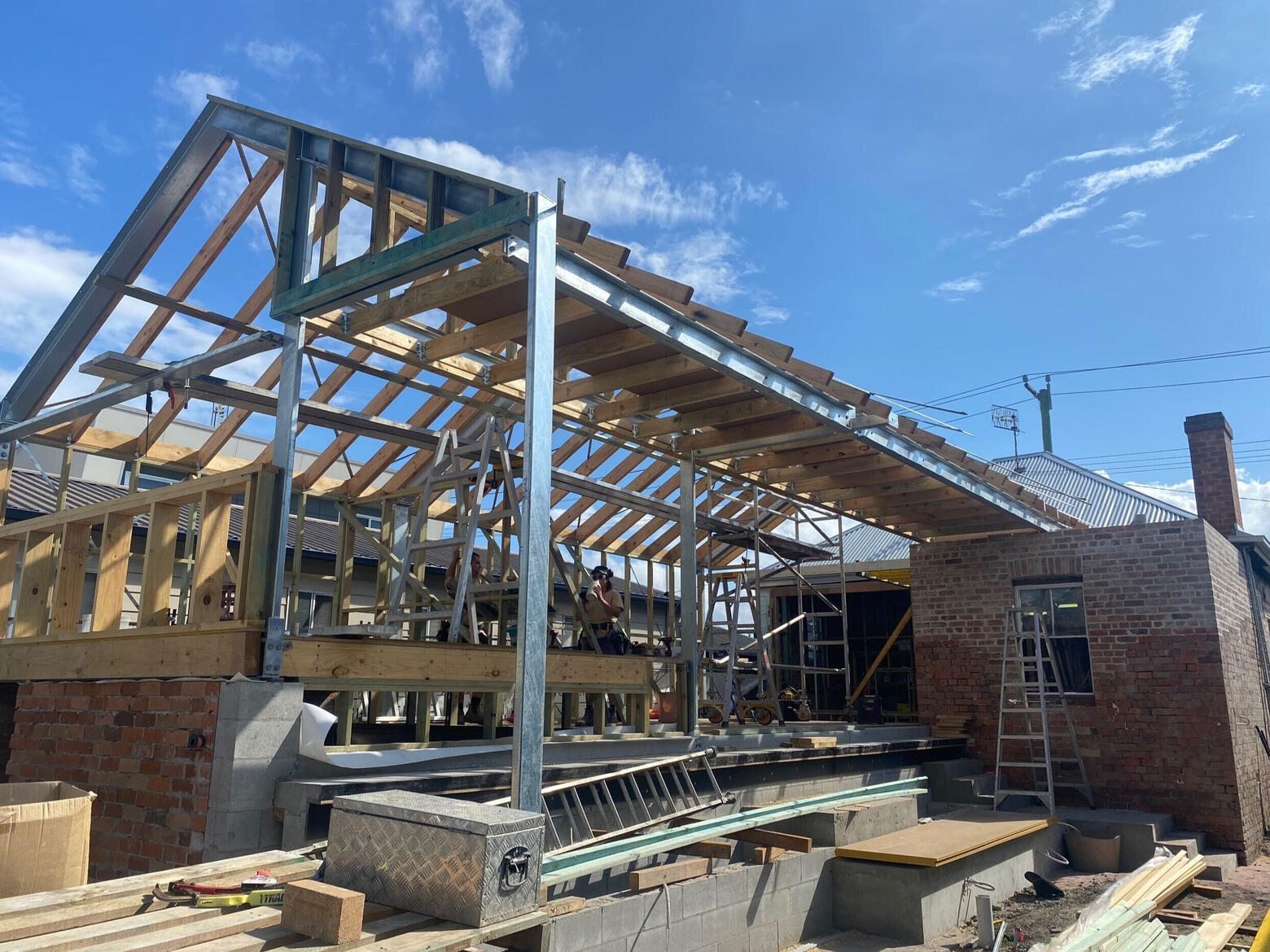

Residential

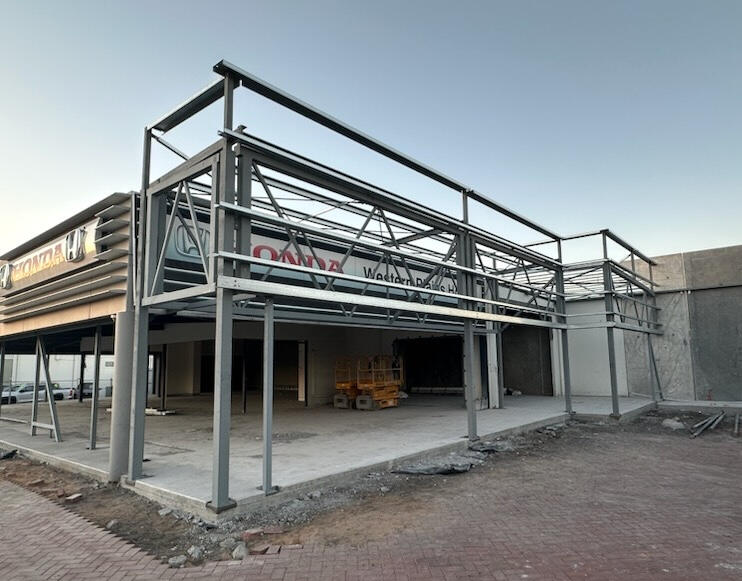

Commercial

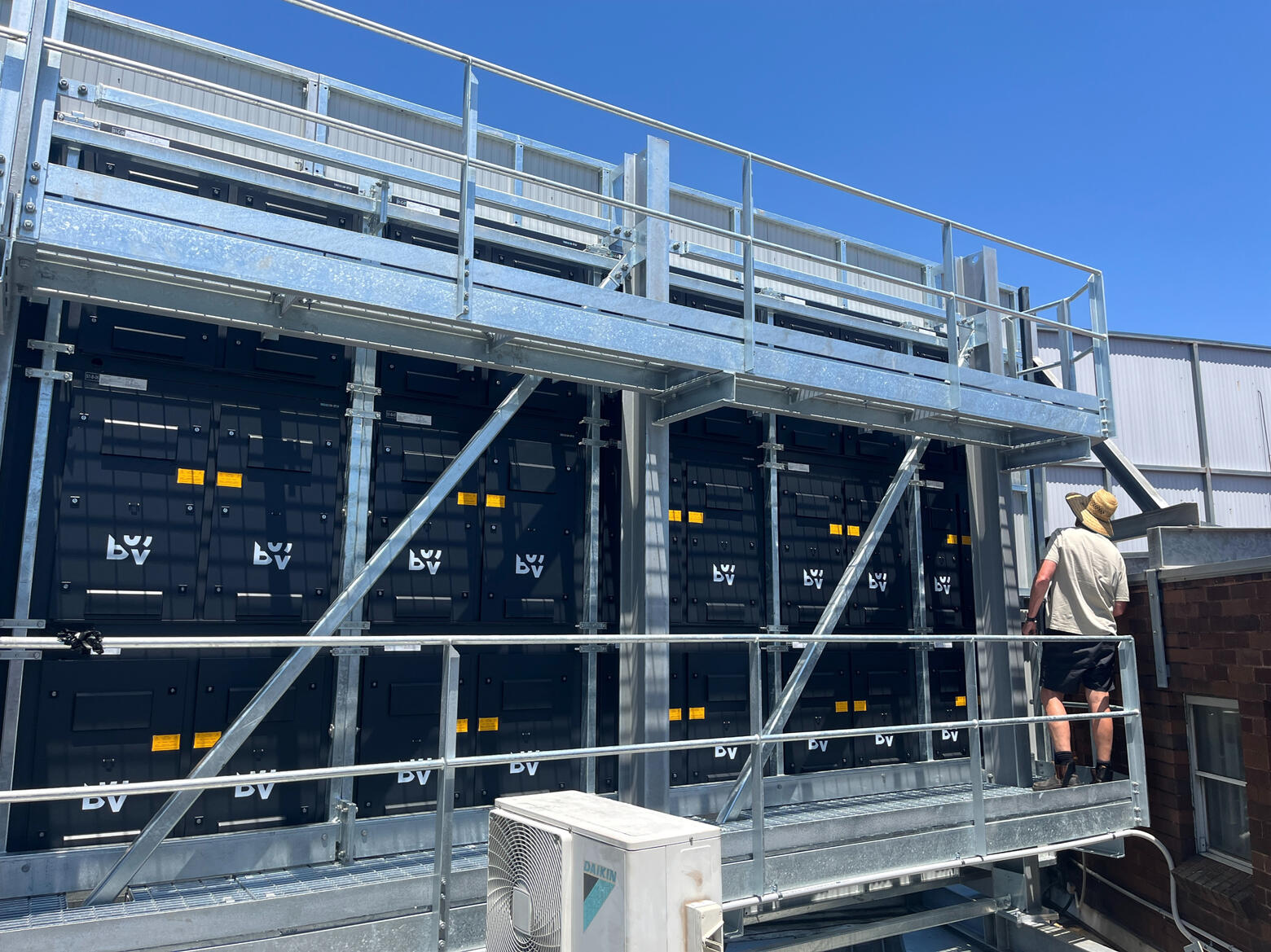

Industrial

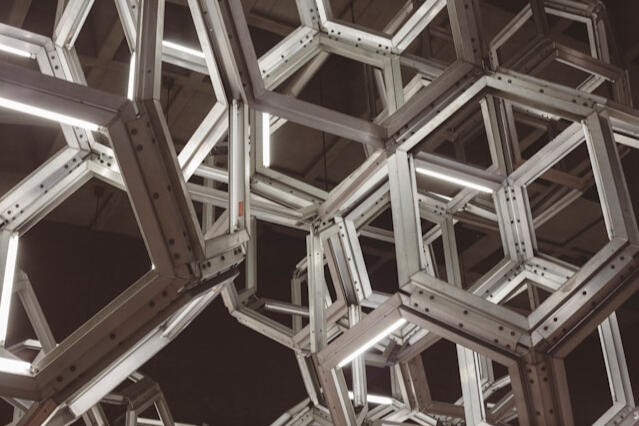

Architectural

Attention to Detail

Accurate & Build-Ready Drawings

Efficient Turnaround

Trusted by Builders & Fabricators

Their drawings are always spot-on, and they really help make things run smoother during fabrication and install. The team is easy to work with, quick to respond, and clearly know their stuff. They catch issues early and make sure everything lines up properly, which saves us a lot of headaches down the track.
Highly recommend them if you’re after reliable, no-fuss steel detailing that gets the job done right.- Cristin, Synergy Engineering

I work with Joe year-round, and his work is always top-notch. I specialise in prefabricated timber framing, and Joe handles the metal detailing on our projects. The coordination between our two scopes is always smooth, and everything comes together seamlessly on site. Joe is reliable, precise, and delivers on time every time. His professionalism and attention to detail make all the difference.- Fabien, Expertise Design and Construction

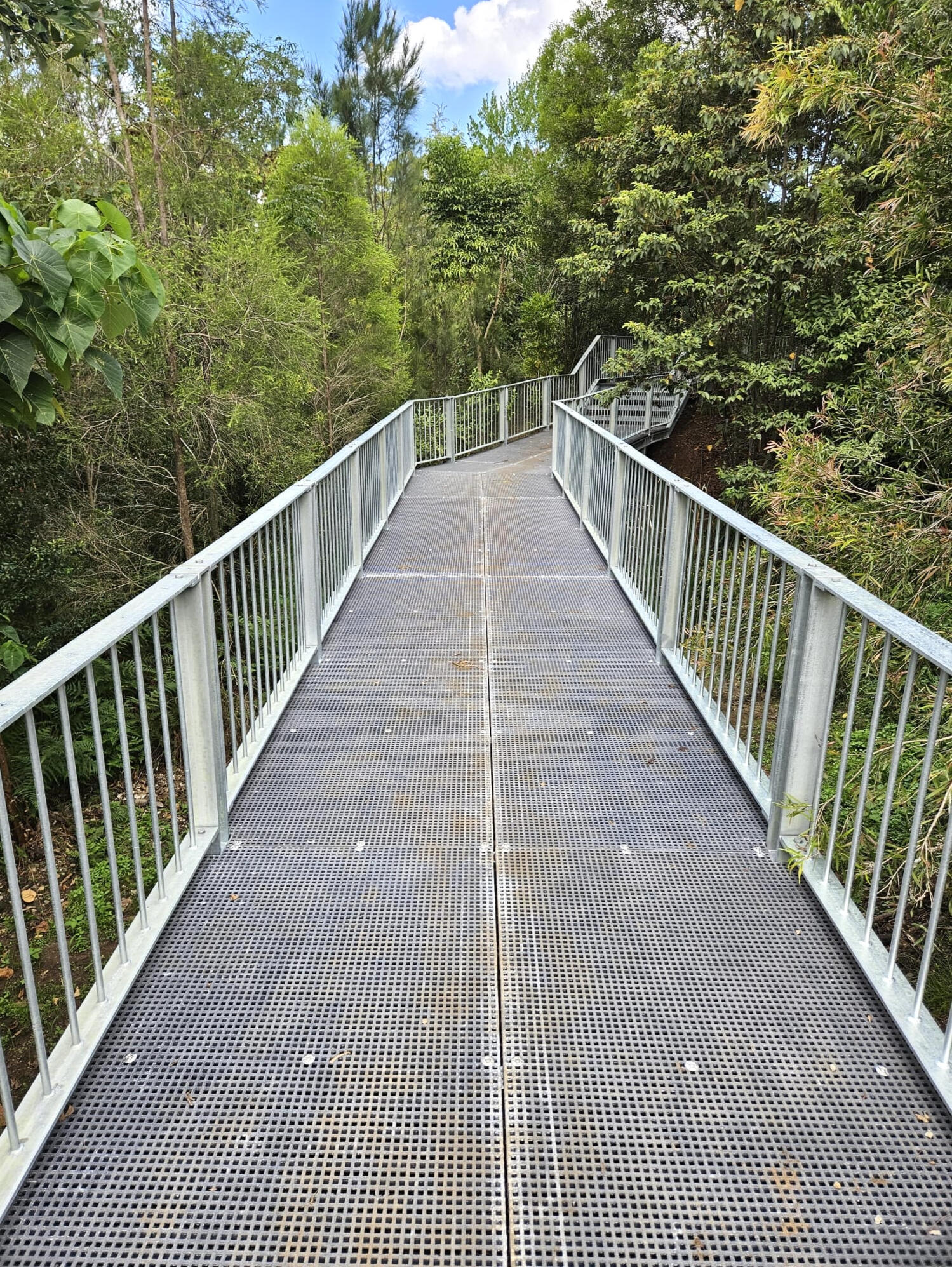

Smart Steel Detailing has delivered a number of complex boardwalk, bridge and structural steel workshop drawing packages for Frontier Assembly. They were exceptional in delivering precise and high-quality drawings with an emphasis on ease of fabrication and constructibility. Their attention to detail, professionalism and ability to meet tight deadlines made a significant impact on our projects. Highly reliable, knowledgeable and a pleasure to work with, I would highly recommend Smart Steel Detailing.- David, Frontier Assembly
